Custom Group Order in a SharePoint List



The problem

Suppose you have a standard SharePoint list with its items grouped by a field. By default, the SharePoint interface allows you to show the groups in ascending or descending order, and the ordering is done based on the group's name.
What do you do if you want to control the order in which the groups are shown? You may want to draw attention to a certain group and put it at the top, without changing its name or the grouping criteria, or move one down to the end of the list, and you want to do that from the user interface, without any 3rd party installations.

The solution

The idea is to have a secondary list containing your group names, while the primary list contains a look-up field pointing at the secondary list's elements. The secondary list, which we will call "Lookup list", contains an extra column called GroupIndex with the index positions each group will have in the final render. We will then use SharePoint Designer to change our grouped view into a XSLT view, use the two joined tables as a linked data source, and implement a custom Sort Expression to use the GroupIndex column for the final render.

Consider the classical example of Products and Product Categories, using sample data as depicted below:



The Product Categories list. Note the GroupIndex column to the right contains the positions each group will have in the final display.


The Products list

I have created a view which groups the items by category. As you can see the category groups are sorted ascending, which is really what we want to change.

  • Convert the view to XSLT Data view

Open your site in SharePoint Designer. Navigate to the ProductsList, and then to the GroupedByCategory view. Right click on the list and choose "Convert to XSLT Data view".



  • Create the linked source

Make sure the Task Pane "Data Source Library" is selected from the main Task Pane menu.
Right click on your XSLT Data view and select the last option "Data View Properties". This will automatically display the Data Source Details Pane containing the current source for your Data View. Click on the "Related Data Sources" button and choose the only available option in order to change the Data Source:


Say "OK" to the warning dialogue. This view will be used just for information, while CRUD functionality can be employed elsewhere.
The ProductsList already exists as a data source, we need to link it with the look-up list. In order to do this, add the ProductCategoriesList to the SelectedDataSources control and click Next.


In the next window, select "Join the contents …": this will allow us to specify the field used to join the two tables and establish the relation between them. You can also give it a name (in the General tab), for example "ProductsDataSource":

  • Apply the Custom Sort Expression

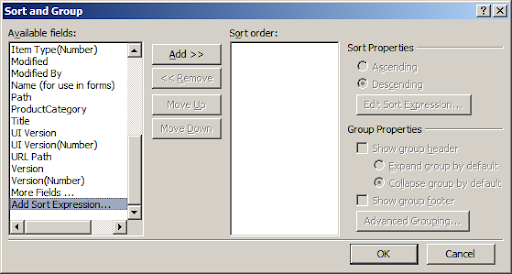

Now that we have our linked source added to your XSLT Data View, we can add the Custom Sort Expression. Inside the "Common Data View Tasks" Pane, click on "Sort and Group". The following window will appear:

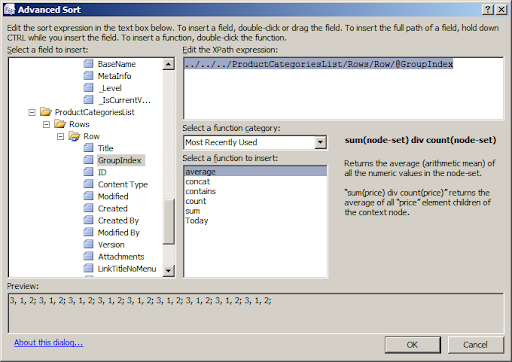

Choose "Add Sort Expression" from the list of Available feeds and click "Add". In the next window, scroll all the way to the bottom, expand the Rows/Row tree nodes inside the ProductCategoriesList node, and drag the GroupIndex column to the Xpath Expression control. You should see something like this:


Now we finally get to change the sort expression:
Instead of
../../../ProductCategoriesList/Rows/Row/@GroupIndex

we edit it to

../../../ProductCategoriesList/Rows/Row[@Title=current()/@ProductCategory]/@GroupIndex

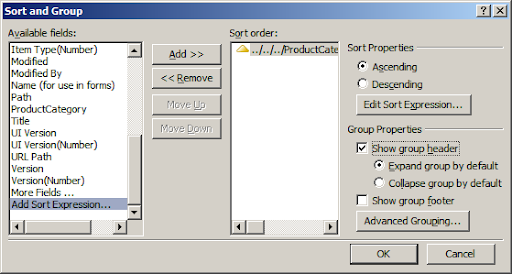

We will see later the purpose of this line and how it is applied. For now, let's finish with the custom sort order. Click OK and you will return to the previous window. Make sure you check the "Show group header" checkbox under Group Properties (see picture below), otherwise your group header will not be rendered:



Click OK and now your Data View will be rendered again using the new sorting criteria.
So much work and there's already a first problem: our group names have vanished! Instead, we now see the GroupIndex values. This is perfectly correct because the default XSLT uses for display the attribute used for sorting, and we need change this: back into SharePoint Designer, click on Split view mode to see the code behind the page. Now click on the first grouping header ("1" in our case) to see the corresponding part in the XSLT:



As you can see, the transormation displays the value of the $fieldvalue parameter, which will need to have a new value according to our needs. If we scroll up a little bit, we can see the name of the template that generates the group headers. In this case, it is defined like this:

<xsl:template name="dvt_1.groupheader0">

We now need to search for the place where the template is called. The call looks like this:

<xsl:call-template name="dvt_1.groupheader0">
<xsl:with-param name="fieldtitle">
<xsl:with-param name="fieldname">../../../ProductCategoriesList/Rows/Row[@Title=current()/@ProductCategory]/@GroupIndex>
<xsl:with-param name="fieldvalue" select="$groupheader0" />
The value for the $fieldvalue parameter is $groupheader0, which was previously initialised with the exact value of our custom sort criteria. We simply need to change

<xsl:with-param name="fieldvalue" select="$groupheader0" />
to

<xsl:with-param name="fieldvalue" select="@ProductCategory" />
... and our job is finished. Now, the list looks like this:




The groups are sorted in ascending order based on the group's GroupIndex column, defined in the ProductCategories list.


Behind the scenes

So what does really happen when we change the custom sort expression? If you are curious enough to look inside the generated XSLT, you will see that our modified line ../../../ProductCategoriesList/Rows/Row[@Title=current()/@ProductCategory]/@GroupIndex is used, among other places, as an argument to the <xsl:sort/> when iterating through $Rows. In plain English, the sort expression above would translate to: "For each of the Rows to be displayed (which are Products), order and group them by the value of the GroupIndex attribute for the Row inside the ProductCategories list that has the Title equal to the current Product's ProductCategory." ; Note that the current() XSL function is needed because the <xsl:sort/> call is placed inside a <xsl:foreach/> element.


Conclusion

Hopefully you have taken a glimpse at just how much you can customize a view using SharePoint Designer. Should you take a further look inside the default XSLT template, you may find new layers of customization, some of which will be outlined in future posts on this blog.

5 comments:

Anonymous said...

Hello, thank you for your post - I would like to konw how you would customize your group order by using the Count of the group. so that the group is ordered descending by the number of items in the group?

So that if you Group by Company Name, you get the following as group headers?

Company Name C(5)
Company Name A(3)
Company Name B(1)

Thank you!

Tudor said...

Hello,


Concerning your problem to sort the groups acording to the number of elements they contain, I will assume the following about your list:

-The elements are grouped by a column called Company (which can be a look-up field or a choice, it doesn't matter)


1. Open your page in SharePoint Designer and convert your list to an XSLT DataView.
2. In code view, inside the generated xslt, locate the definition of the template called dvt_1.body. You will see that it contains the name of some template parameters (ParentPath, Rows, FirstRow, LastRow), the definition of the $dvt_Rows variable, and then the iterating through $Rows starts. Right after the xsl:for-each tag, you should add the following line:

<xsl:sort select="count(msxsl:node-set($dvt_Rows)/root//Row[@Company=current()/@Company])" order="descending" />


You can change @Company to whatever your grouping column is called.
Basically, it sorts the current group headers by the number of child rows which have the same value in the Company attribute as your current group section row has, which is exactly what you are looking for.
For more insight, check how $dvt_Rows is defined.


As you can see, after converting the previously grouped list to an XSLT Data view, the number of child rows for each group isn't displayed anymore. To show it again, locate the definition of the dvt_1.groupheader0 template, scroll just before it ends, locate the line:

<xsl:otherwise><xsl:value-of select="$fieldvalue"></xsl:value-of></xsl:otherwise>

<xsl:otherwise><xsl:value-of select="$fieldvalue"></xsl:value-of> (<xsl:value-of select="count($nodeset)" />) </xsl:otherwise>

The count($nodeset) displays the number of "child" rows contained by this group.

Also, on a minor note, the template names above (such as dvt_1.groupheader0) are the defaults created by SharePoint Designer when there are no other such data views in the page. Depending on this, the name templates may change.


Thank you for your interest in this,

Tudor

Anonymous said...

Wonderful - that worked! One small quirk because I have 1 more group heading before my Company heading. Let's say it is called Country, where I'm grouping all companies by Country in ascending order. I believe this may affect where I place the new xsl:sort code, or maybe even change that code completely. Because after adding the code you provided, I am seeing more than 1 of the same country group header with company's below it. Must be based somehow on the count value of the child for Company??

Thank you for your response and I hope you can understand this new comment - I'm not sure I do!! :)

Thanks
Renee

Tudor said...

Renee,

I understand what you need to do, it seems something quite usual and therefore I have posted a new article about the solution to your problem, you can find it here.

Please let me know if you have further questions regarding this :)

Tudor

Bazin Makonnen said...

Thank you. This was very helpful.

Bazin Makonnen
